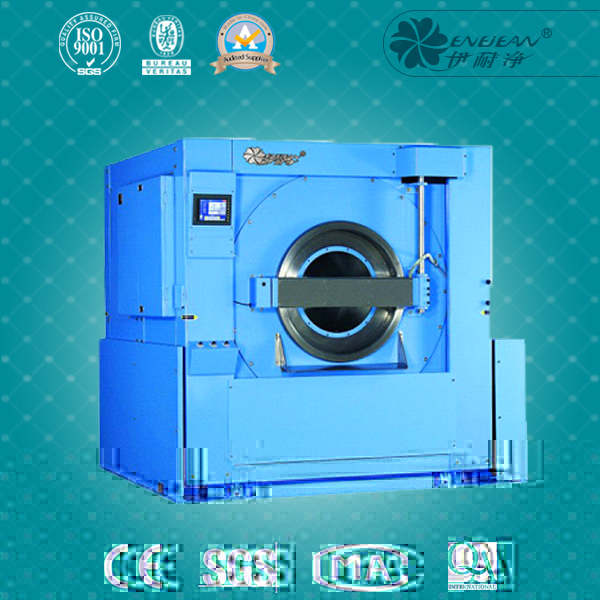

功能點Feature and functions
●使用7.7存彩色觸控面板，視覺，內部存有12個可自由編輯的程式。
●采用液壓傾斜裝置，要持久耐用，前傾20度，可使布草自動排出，減少布草拉扯，降工作量,節約時間。
●懸系統采用空氣彈簧+阻尼器方式。
●設備在使用過程中采用的氣墊充排氣方式，使減震佳，噪音小。
●Deposit color touch panel using 7.7 then better visual eff-
ects, there are 12 internal programs can be freely edited.
●With hydraulic tilt device to durable and lean forward 20 degrees which can be automatically discharged rapidly lin-
en, linen pull reduce, reduce workload, save time.
●Suspension system uses air springs and dampers way.
●Device uses a unique approach in the use of exhaust air and filling process, so damping better and quieter.
●使用7.7存彩色觸控面板，視覺，內部存有12個可自由編輯的程式。
●采用液壓傾斜裝置，要持久耐用，前傾20度，可使布草自動排出，減少布草拉扯，降工作量,節約時間。
●懸系統采用空氣彈簧+阻尼器方式。
●設備在使用過程中采用的氣墊充排氣方式，使減震佳，噪音小。
●Deposit color touch panel using 7.7 then better visual eff-
ects, there are 12 internal programs can be freely edited.
●With hydraulic tilt device to durable and lean forward 20 degrees which can be automatically discharged rapidly lin-
en, linen pull reduce, reduce workload, save time.
●Suspension system uses air springs and dampers way.
●Device uses a unique approach in the use of exhaust air and filling process, so damping better and quieter.
技術參數Technical parameters
|
型號 model 項目 item |
sxt-125q | |
| 整機重量 | weight | 125KG |
| 內眮 drum size | 直徑 diameter | 1.290mm |
| 深度 deep | 905mm | |
|
回轉數 revolution |
容積 volume | 1.182L |
| 洗灌 drain away water | 20.25.30.35.40rpm | |
| 平衡 balance | 44.47.50rpm | |
| 門開口 | opening door size | Ψ808mm |
| 控制方式 | control type | 觸控面板 touch plate |
| 馬達容量 | motor capacity | 13.2KW |
| 所需蒸汽壓 | steam pressure | 7.0KG/ cm2 |
| 標準給水量 | standard water yield | 7.0KG/ cm2 |
| 給水壓力 | feed water pressure | 1.757L |
|
配管match pips size |
冷水 clod water | 1.0-2.8KG/cm2 |
| 溫水 warm | 2″ | |
| 蒸汽 steam | 2″ | |
| 后部排水 background | 1″ | |
| 下部排水under off water | 4 | |
| 排氣 venting | 6″ | |
| 空壓 compressed air | 3″ | |
| 懸系統 | overhang system | 3/8″ |
| 傾斜 | tile | Air cushion氣墊3組 ground+避震器shock absorber |
| 電源 | power supply | 前傾forerake20° |
| 電氣配線 | electric line | 10mm2 |
| 電流 | Max current | 35A |
| 電源開關 | electric source switch | 75A |
| 機械尺寸 | dimensions | 2320W*2316D*2166H |
| 機械重量 | net weight |
4900KG |
