1、用途說明及要求：
1.1 可自動完成布草烘干等程序。
1.2 機器為熱風循環結構，適用于對各種布草進行徹底的烘干（如：床單、被套、工作服、手術衣、包布、洞巾等）
1.3 配置：本機由加熱器、缸體、滾筒、排風、傳動結構、溫度控制系統等組成，對布草自動進行烘干。

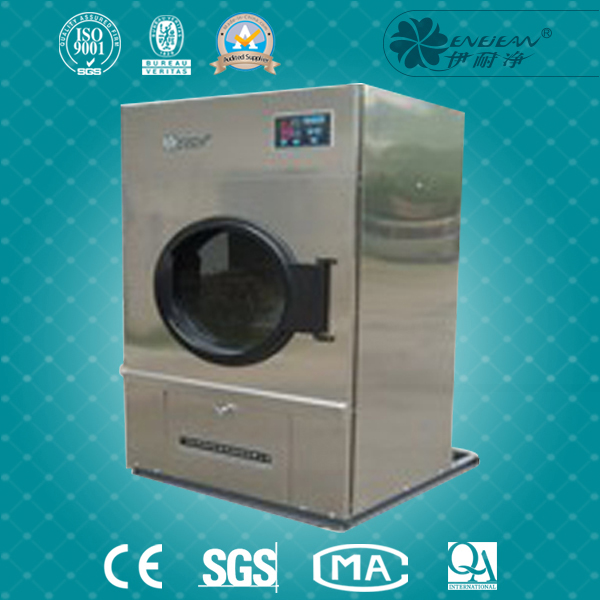

自動干衣機技術參數
1、用途說明及要求：
1.1 可自動完成布草烘干等程序。
1.2 機器為熱風循環結構，適用于對各種布草進行徹底的烘干（如：床單、被套、工作服、手術衣、包布、洞巾等）
1.3 配置：本機由加熱器、缸體、滾筒、排風、傳動結構、溫度控制系統等組成，對布草自動進行烘干。
2、技術參數及配置要求：
2.1用不銹鋼面板和內筒，使用壽命長。
2.2門玻璃法蘭采用金屬不銹鋼，磨損。
2.3面積烘干機毛絨收集器采用抽屜式，防積塵網機，直徑風葉，不容易堵塞毛絨，熱轉換效率，方便打掃和收集毛絨。
2.4微電腦自動控制，液晶屏幕顯示一目了然，具有故障和功能自檢系統，并可根據不同洗滌物含水率可任意設定烘干時間、烘干溫度、自動倒運轉。中途開門查看自動停止運轉，到設定烘干時間自動停止運轉并發出停轉信號提示。
2.5主電機:1.5Kw
2.6風機:1.1Kw
2.7滾筒容積:50KG
2.8烘干時間:≤45min
2.9蒸汽耗量:80kg/h
2.10進汽管道通徑:Dn25
2.11風機排風量:2500m
2.12排風管口徑:220*220
2.13滾筒尺寸Φ:1200x880
2.14外形尺寸(L.W.H) (mm):1330x1380x2280
2.15 產品經輕工業服裝洗滌機械質量監督檢測監定。
2.16 產品經過CE認證。
功能點Feature and functions
●烘干機內膽采用進口質不銹鋼精心制作，整個烘干過程自動控制，的數字感溫儀表顯示溫度，可以在操作過程中避免事故的發生，有蒸汽加熱，電加熱,燃?xì)猓喾N型號。
●熱效率，使用方便，采用功率加熱器，熱交換快，熱能利用。
●采用直徑裝衣門，裝卸衣物方便。
●面積毛絨收集網，在直徑風葉，不易被毛絨堵塞，了風道暢通。
●電腦控制可控制時間和烘干溫度，電腦面板采用輕觸式按鍵，操作靈活。
●Dries the clothes within the aircraft gallbladder to use the import high quality stainless steel to manufacture carefully, the entire drying process automatic control, the precise digital feeling warm measuring appliance demonstration temperature, may avoid accident's occurrence in the operating process, has the steam heating, the electric hearing the fuel gas a variety of models.
●The thermal efficiency is low, the easy to operate, uses the high efficiency heater, the heat change is quick the heat energy uses high.
●Uses the large diameter to install the clothes gate, loads and unloads the clothing to be convenient.
●The big area plush collection network the large diameter wind leaf, by the plush jamming, had been guaranteed not easily the air flue is unimpeded.
●The entire computer control may the accuracy control time and the drying temperature, the computer kneading board uses touches the type pressed key lightly, the operation is flexible.
●烘干機內膽采用進口質不銹鋼精心制作，整個烘干過程自動控制，的數字感溫儀表顯示溫度，可以在操作過程中避免事故的發生，有蒸汽加熱，電加熱,燃?xì)猓喾N型號。
●熱效率，使用方便，采用功率加熱器，熱交換快，熱能利用。
●采用直徑裝衣門，裝卸衣物方便。
●面積毛絨收集網，在直徑風葉，不易被毛絨堵塞，了風道暢通。
●電腦控制可控制時間和烘干溫度，電腦面板采用輕觸式按鍵，操作靈活。
●Dries the clothes within the aircraft gallbladder to use the import high quality stainless steel to manufacture carefully, the entire drying process automatic control, the precise digital feeling warm measuring appliance demonstration temperature, may avoid accident's occurrence in the operating process, has the steam heating, the electric hearing the fuel gas a variety of models.
●The thermal efficiency is low, the easy to operate, uses the high efficiency heater, the heat change is quick the heat energy uses high.
●Uses the large diameter to install the clothes gate, loads and unloads the clothing to be convenient.
●The big area plush collection network the large diameter wind leaf, by the plush jamming, had been guaranteed not easily the air flue is unimpeded.
●The entire computer control may the accuracy control time and the drying temperature, the computer kneading board uses touches the type pressed key lightly, the operation is flexible.
