功能點Feature and functions

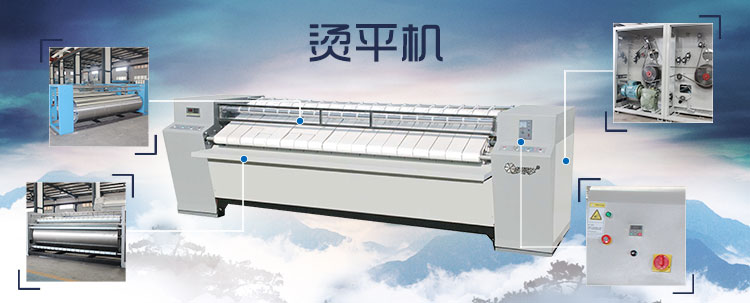

●YTP電熱燙平機采用電加熱,傳動采用調速調整,根據加熱溫度和織物厚度隨意調節速度。
●輥筒采用傳質不銹鋼制造,表面經磨削加工處理使織物磨損降到。
●運行可靠,采用減速器聯接皮帶輪及鏈輪傳動,并配置傳動引擎機構,運行平穩。
●副輥采用噴鋅處理,抗腐蝕能力強,經久耐用。
●YTP the electric heating irons out machine uses thetric heating, the transmission uses the velocity modulation adjustment, according to heating temperature and fabric thickness at will adjustable speed.
●The big bowl uses the mass transfer stainless steel manufacture, the surface causes fabric attrition after abrasive machining processing to reduce lowly.
●The movement is reliable, uses the reduction gear joint belt pulley and the sprocket feed, and disposes the transmission engine organization, the guarantee movement is steady.
●All vice rollers use spurt zinc processing, corrosion resistance ability, durable.
●YTP電熱燙平機采用電加熱,傳動采用調速調整,根據加熱溫度和織物厚度隨意調節速度。
●輥筒采用傳質不銹鋼制造,表面經磨削加工處理使織物磨損降到。
●運行可靠,采用減速器聯接皮帶輪及鏈輪傳動,并配置傳動引擎機構,運行平穩。
●副輥采用噴鋅處理,抗腐蝕能力強,經久耐用。
●YTP the electric heating irons out machine uses thetric heating, the transmission uses the velocity modulation adjustment, according to heating temperature and fabric thickness at will adjustable speed.
●The big bowl uses the mass transfer stainless steel manufacture, the surface causes fabric attrition after abrasive machining processing to reduce lowly.
●The movement is reliable, uses the reduction gear joint belt pulley and the sprocket feed, and disposes the transmission engine organization, the guarantee movement is steady.
●All vice rollers use spurt zinc processing, corrosion resistance ability, durable.
技術參數Technical parameters
|
型號 model 項目 item |
YTP-1800 | YTP-2200 | YTP-2500 | YTP-2800 | YTP-3000 | |
| 熨平寬度 | Biggest ironing width | 1800 | 2200 | 2500 | 2800 | 3000 |
| 熨平速度(speed/min) | Ironing | 0-6 | 0-6 | 0-6 | 0-6 | 0-6 |
| 加熱功率(KW) | Heated power | 27 | 32.4 | 36 | 43.2 | 43.2 |
| 加熱溫度(℃) | Highest heating temperature | 230 | 230 | 230 | 230 | 230 |
| 電機功率(KW) | Motor power | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 |
| 額定電壓(V) | Rated voltage | 380 | 380 | 380 | 380 | 380 |
| 外形(長×寬×) (mm) |
Dimension (L×W×H) |
3000× 1250× 1250 |
3400× 1250× 1250 |
3700× 1250× 1250 |
4000× 1250× 1250 |
4200× 1250× 1250 |
| 整機重量 | Machine weight | 1200 | 1300 | 1350 | 1400 | 1450 |
